What’s New in TopSolid’Wood v6.26

User Interface

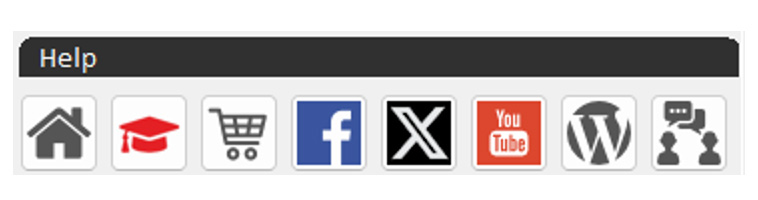

Simplified access to TopSolid’Learning and TopSolid’Faq

TopSolid’Learning is now directly accessible from the home page.

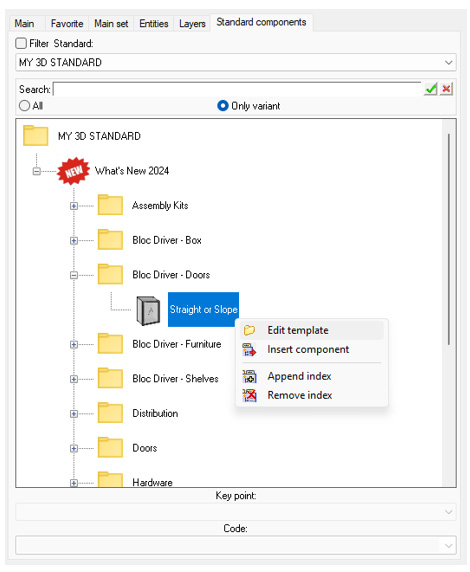

Opening a component from the tree

You can now edit a component model by right-clicking on the corresponding node in the standard component tree

Inclusion of the same component

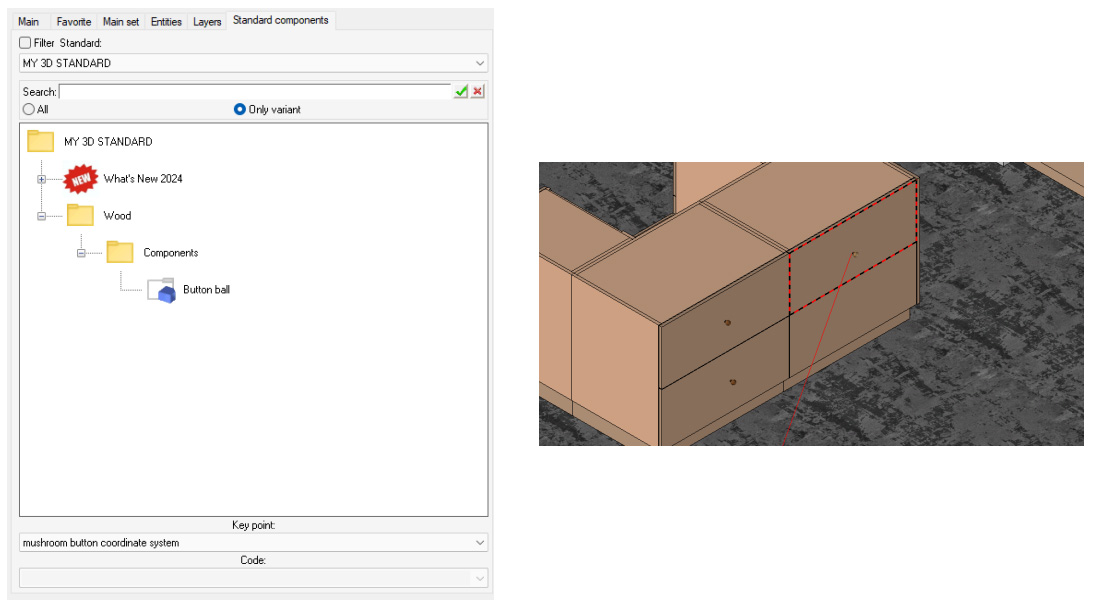

When a component with at least one driver is included via the tree, the Same component button becomes available. This feature allows for quick and easy re-inclusion of the same component.

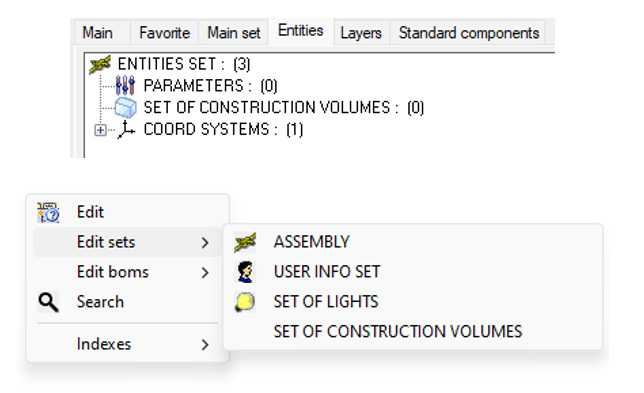

New “Construction volumes” section in Entities tree

The Set of construction volumes section is now visible in the Entities tree when a new document is created.

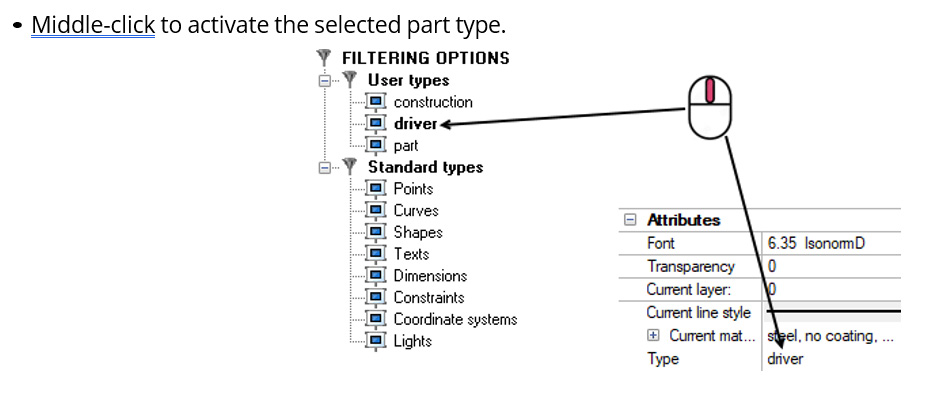

Purging the current part type

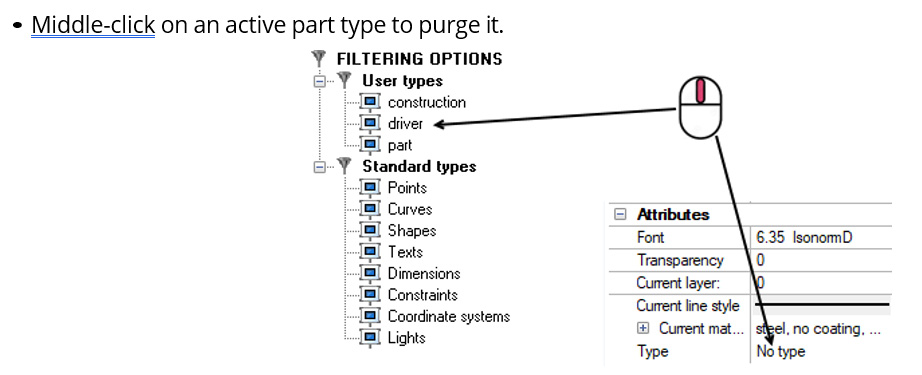

New middle-click actions in the Filtering options tab offer improved management of the current part type:

Driver merging

When including a component with drivers, the Automatic drivers button now merges the component parameters with those already present in the inclusion document.

For example, when including a cabinet with a driver parameter named identically to an existing parameter in the document, using the Automatic drivers button automatically connects the cabinet driver to the inclusion document’s driver.

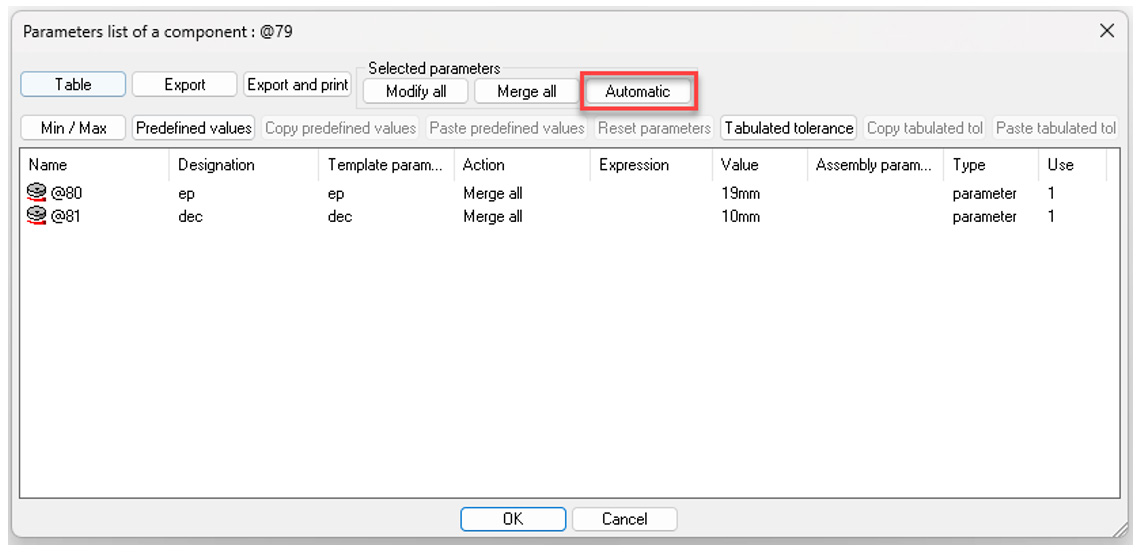

Driver merging after inclusion

A new Automatic button is available in the multiple parameter modification window

Using predefined designations and references

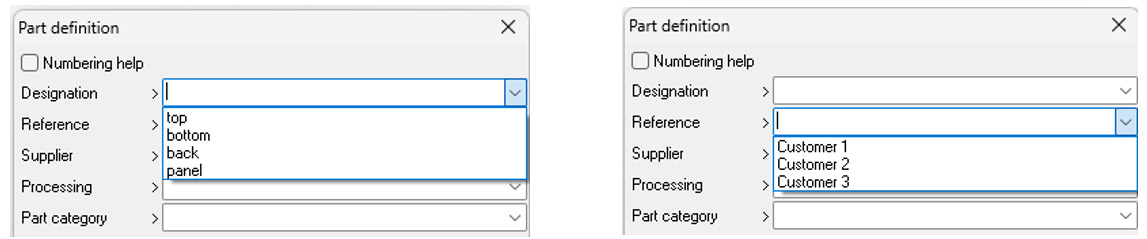

It is now possible to access predefined designations and references set in Tools > Options.

Design

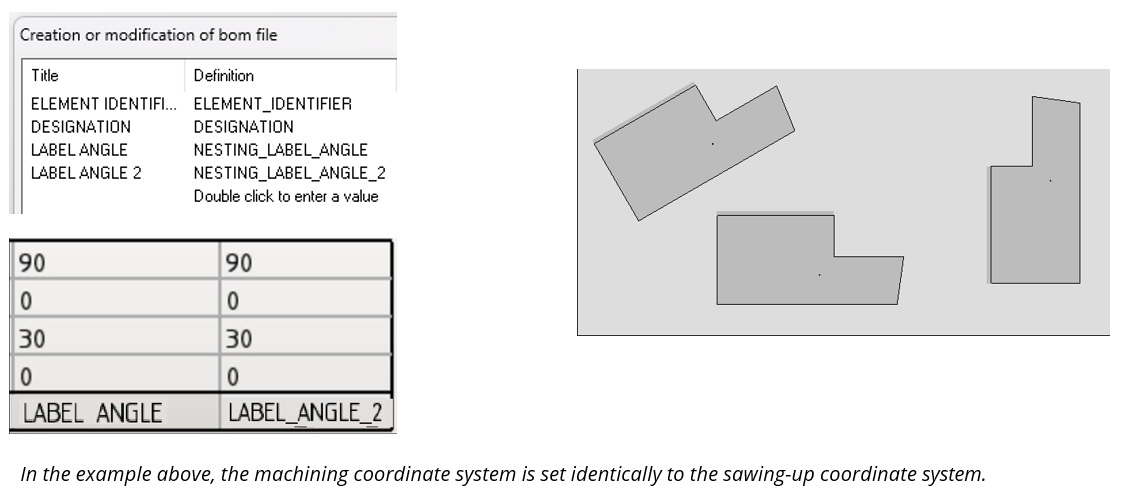

Orientation angle between the part’s sawing-up coordinate system and the nesting support

A new BOM property, NESTING_LABEL_ANGLE_2, indicates the value of the angle between the nesting support and the part’s sawing-up coordinate system.

New button for serial copy

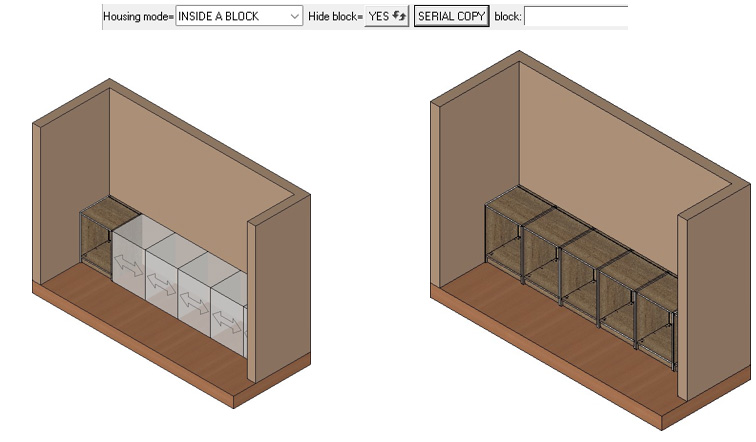

When a driver block component is included in the result of a distribution, the Serial copy button is now automatically proposed.

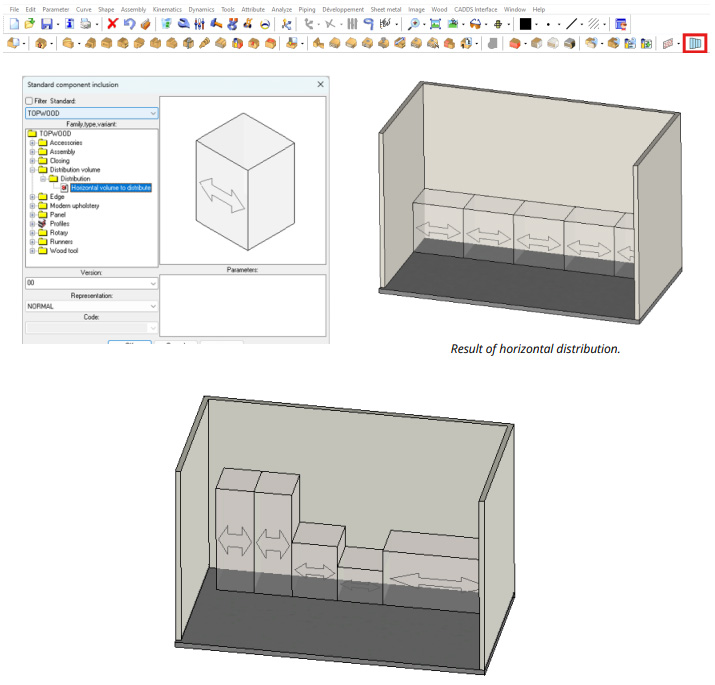

Horizontal distribution

This new command allows you to include a new standard component and immediately launch horizontal distribution.

QR code in bills of materials

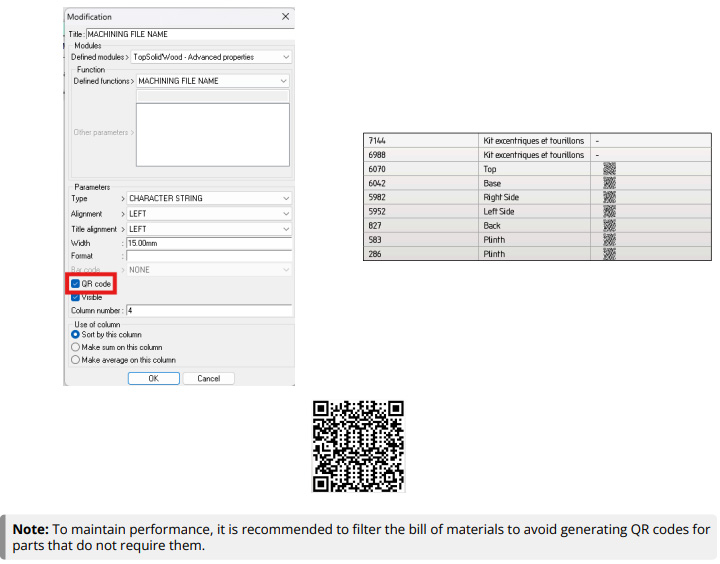

A new feature allows you to convert a BOM property into a QR code for a designated column. To activate it, check the QR code option when editing the relevant column.

New cutting mode for thickened serial curves

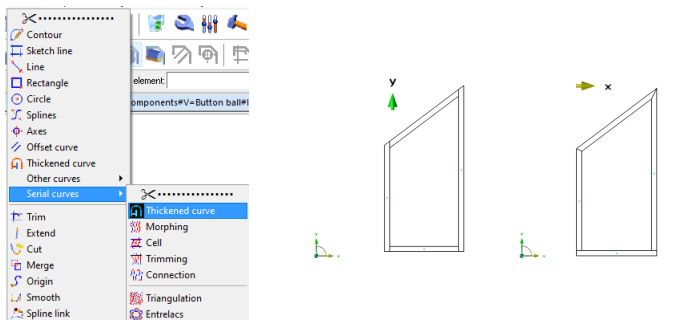

A new cutting mode is available when using the Thickened curve command in serial mode.

Perpendicular cuts are generated between two perpendicular curves, along the given direction. If this is not the case, miter cuts are generated.

Closed curve exclusion

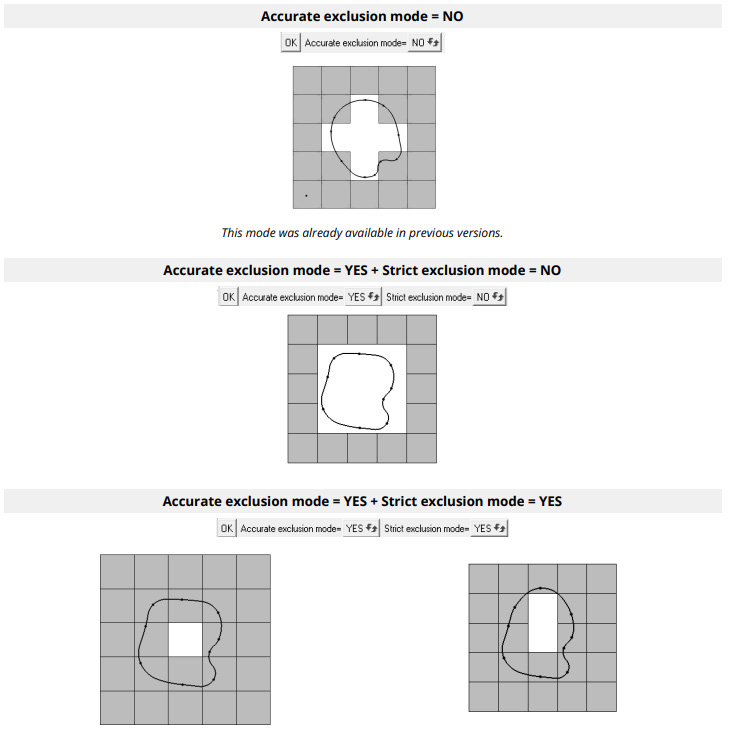

When excluding instances from a propagation by a closed curve, two exclusion modes, accurate and strict, are now available.

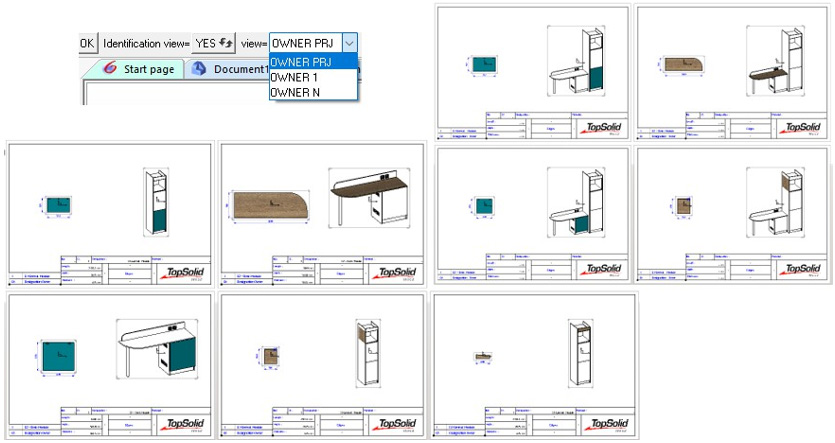

Highlighting a part in multi-drawings

When creating a multi-drawing template, new view creation options are available. For example, they can be used to highlight a specific part within its subassembly, making it easier to visualize.

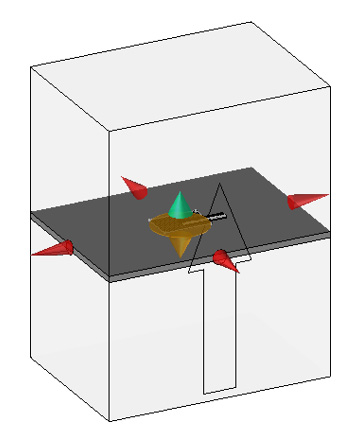

Editing arrows added after creating a constrained block or section

It is now possible to use edit arrows after creating a constrained section or block in manual mode.

Cutting and Punching

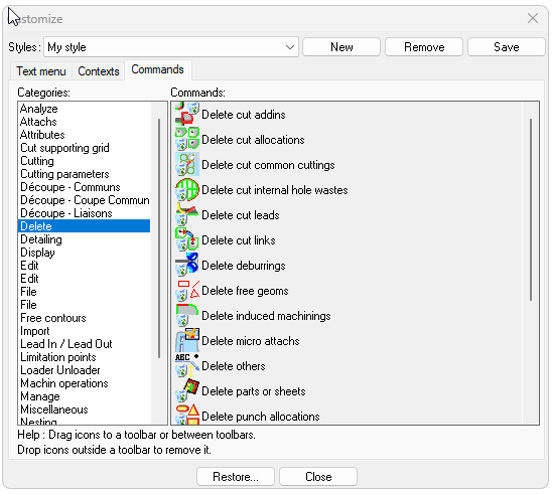

Improved delete command

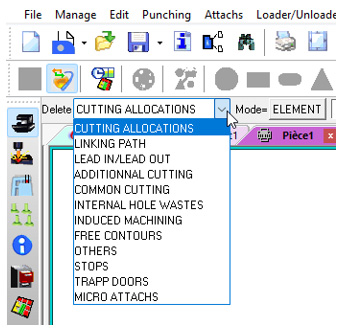

Previously, the Delete command displayed the different types of entities to delete in a drop-down list.

Micro-tabs at the ends of waste cuts

In previous versions, micro-tabs for waste cuts were only available in distributed mode.

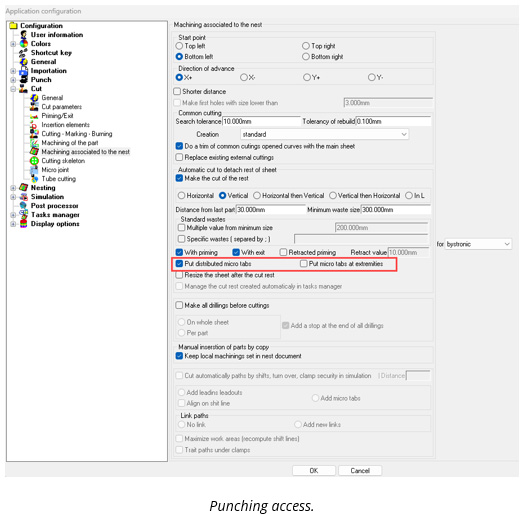

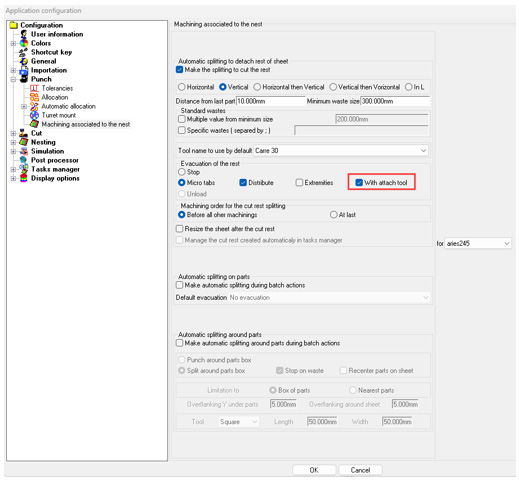

Micro-tabs can now be added to the ends of waste cuts. This feature is available for both punching and cutting.

Punching

Improved tool reordering in operation sequence

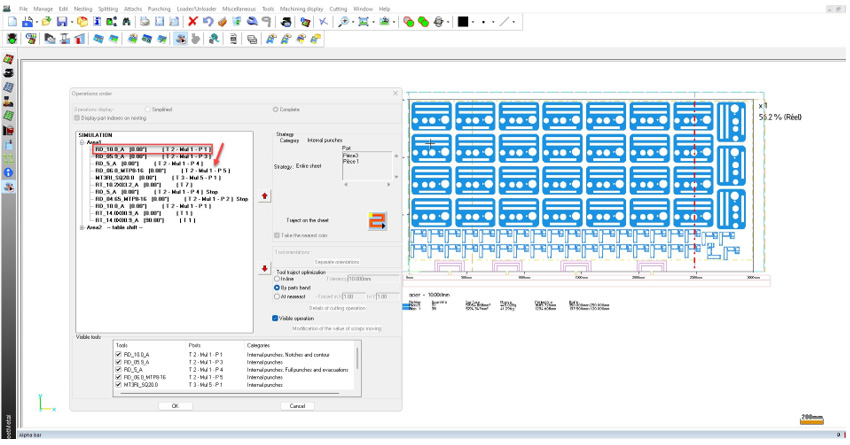

The management of tools in the operation order dialog box has been simplified with the ability to reorder tools using drag-and-drop.

Only one line can be moved at a time.

Punching

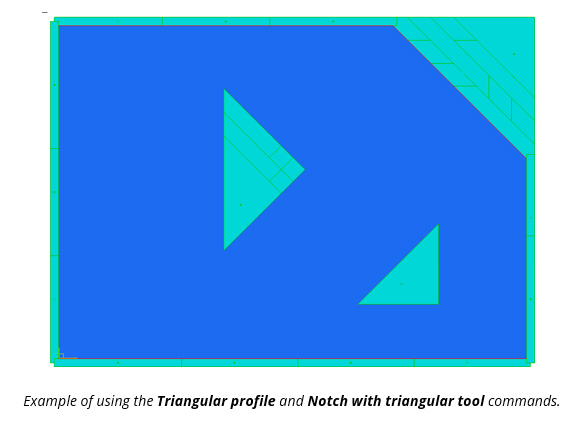

Punch point management for triangle tools

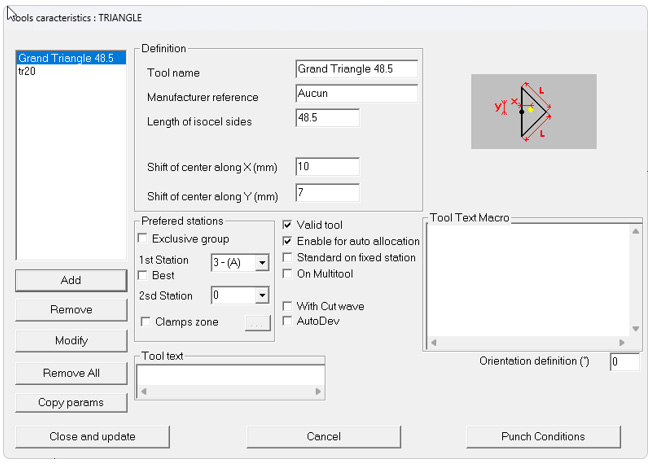

The management of right-angled isosceles triangle tools has been optimised with a new feature that lets you define the exact punch point. You can now position the centre point by specifying offsets on the X and Y axes from the point on the vertical line.

Improved stop position for splitting around parts

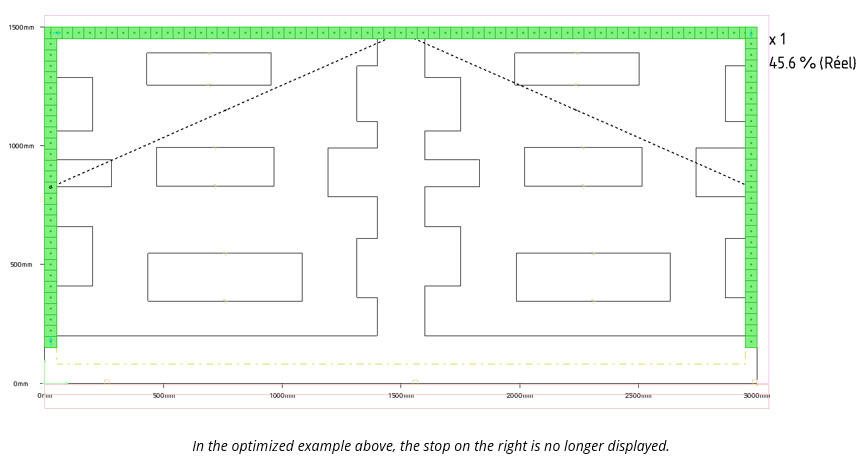

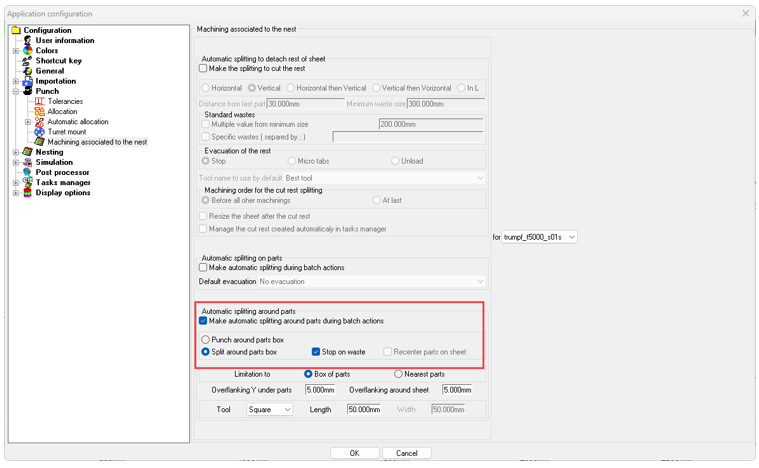

The Border line command, with the Split around parts box option, has been optimised. Enhancements include automatic deletion of unnecessary lines and the ability to add one or more stops as needed.

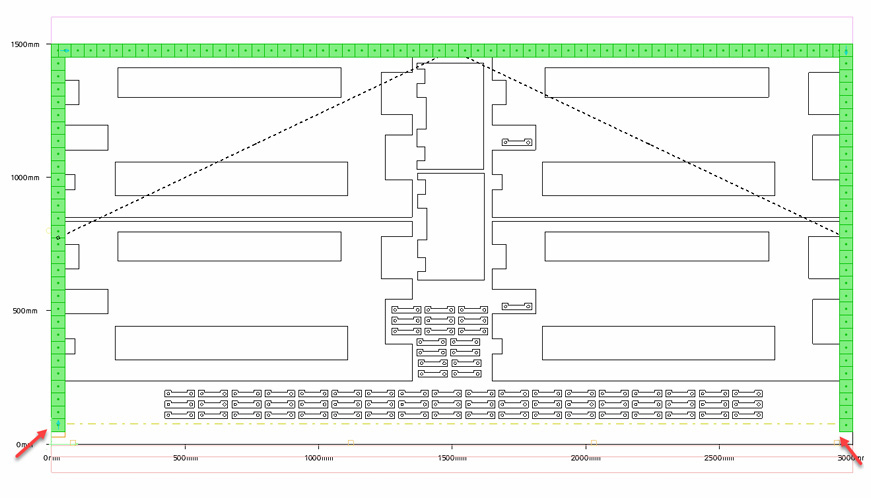

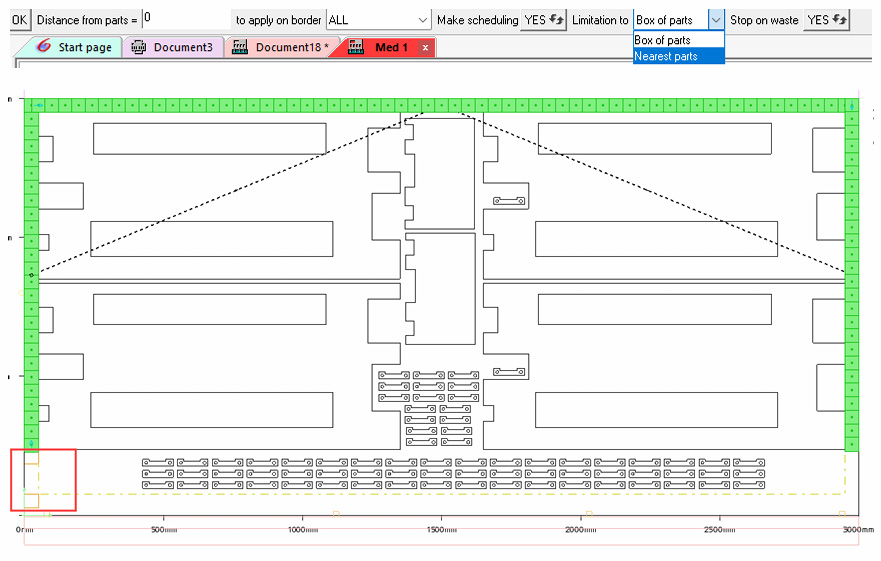

Optimised splitting around parts command

A new feature has been added to the Border line command when the Split around parts box option is selected.

Previously, splitting was only calculated relative to the bounding box of the parts, with automatic overflanking based on the tool dimensions.
